[Expert Guide] 8 Proven Ways to Fix Windows 0x80300024 Error

By Shirley Howard to Fix Windows | 2023-03-24
Approved

Windows error 0x80300024 is a Windows installation error that occurs when you try to upgrade your system to the newer version. This usually happens when the Windows system fails to identify the target device, partition, or volume as bootable, whether nvme SSD or HDD. If you face this issue, it will not let you install the Windows OS successfully. So, here is the complete guide about Windows setup 0x80300024 error, including its solutions.

Part 1: Overview of Error 0x80300024:

When installing Windows 11/10/7, an error that you might face is 0x80300024. This error code indicates some problem with the drive or partition when installing Windows. It usually occurs when you have multiple hard drives or internal storage media, and the system fails to identify which internal storage media is bootable and throws this error with a prompt indicating the cause of the error.

1. Symptoms of Stop Code 0x80300024

The installation or upgradation of Windows OS stops during the process and shows the error code 0x80300024 accompanied by any of the following prompts:

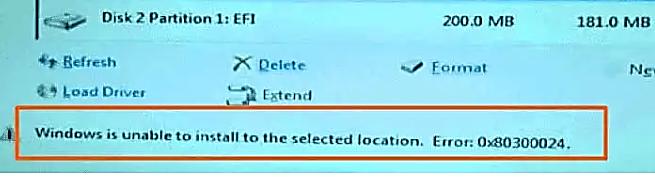

Windows is unable to install to the selected location, Error 0x80300024

0x80300024 symptom

Or, We couldn’t install windows in the location you chose. Please check your media drive, Error 0x80300024.

windows 0x80300024 symptom

2. What Causes 0x80300024 in Windows 7/10/11?

There is no single reason behind the Windows 0x80300024 error, and various factors can trigger it.
  1. Incompatible hardware configuration
  2. Too many unnecessary hard drives/ SSDs connected to your computer
  3. Lower space in the partition you are trying to install Windows in
  4. Corrupt disks or partitions
  5. Damaged or corrupt Windows installation media or the port you have connected it to
  6. Faulty hardware or software

Part 2: How to fix 0x80300024 in Windows 7/10/11 Setup?

Identifying the root cause of errors like 0x80300024 is quite tricky, so is resolving them. However, we have gathered some of the best fixes for you.

Fix 1: Remove Unnecessary Hard Drives

If you have multiple hard drives connected to your PC and are trying to install Windows in one of them, we suggest you remove the remaining hard drives. Any additional hard drive connected to the PC can cause error 0x80300024 as it can conflict with the target drive during installation. Once you have installed Windows in the destination drive, you can reconnect other hard drives.

Fix 2: Ensure you are Using the Correct USB Port

When installing Windows OS with a USB drive, you may insert it into the wrong port, thus resulting in Windows 0x80300024 error. In such a case, remove the USB from the current port and try connecting it to the other ports.

Fix 3: Cleanup Disk Space

As mentioned earlier, lower disk space can be the culprit behind 0x80300024. We suggest you check the space in the partition where you want to install Windows, and if it has lower space, try to free up some space by deleting temporary files, useless programs, and folders. After doing this, try to install Windows again. Hopefully, you will succeed this time.

Fix 4: Set Windows Installer on Boot Priority

If the drive you want to install Windows on is not set as a bootable media, your computer will not allow installation. To set the Windows installer on boot priority, you can follow these steps.

Step 1: Boot your computer up.

Step 2: Press the corresponding key to enter BIOS setup when you see the manufacturer’s logo on the screen. Different PC brands use the different keys mentioned on the startup screen.

Step 3: Switch to the Boot tab in the BIOS screen and look for order/configuration.

Step 4: Set the destination drive on priority by moving it up in the boot order.

enter into boot menu

Step 5: Save changes and exit the BIOS setup.

After the PC restarts, you can reattempt to install Windows.

Fix 5: Run DISKPART Command

Sometimes, the drive partition tables become corrupted, causing error 0x80300024 in Windows 7, Windows 10, and Windows 11. You can run the DISKPART command using the elevated command prompt to repair any such partition.

Step 1: Note the system partition when Windows setup lists the available partitions.

Step 2: Press Shift + F10 keys simultaneously.

Step 3: Type DISKPART, hit Enter.

Step 4: Type List Disk, press Enter.

Step 5: Type Select disk (System partition number) and press Enter.

Step 6: Lastly, type Clean and run the command.

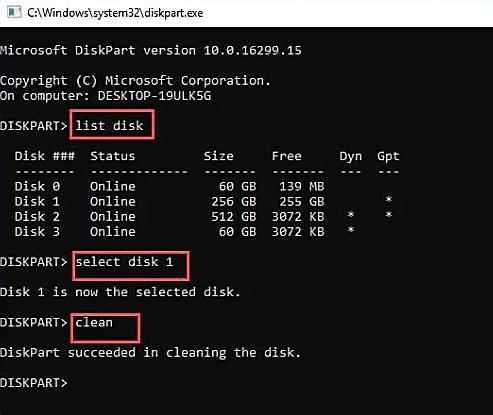

run diskpart command

After the above commands have run successfully, you can check whether the issue has been eliminated.

Fix 6: Format the Destination Partition

If the destination partition where you are trying to install the Windows is not newly created and contains data, it might conflict with Windows installation routines. It is always recommended to create a new partition for Windows installation or format the existing partition for Windows installation.

Step 1: Insert the Windows installation media and boot your computer from it.

Step 2: Choose Language and keyboard settings and set other preferences.

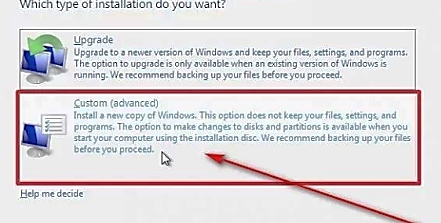

Step 3: Choose Custom in the Windows installation options.

choose custom in windows installation

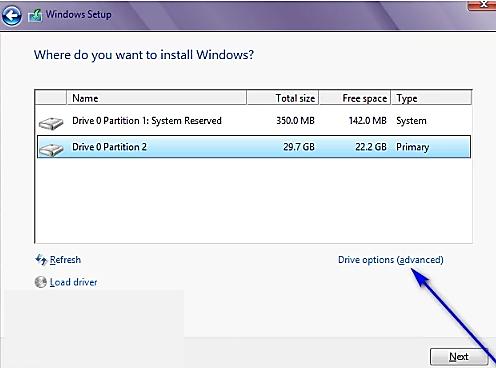

Step 4: On the next screen, click the Drive options (Advanced) link.

format destination partition

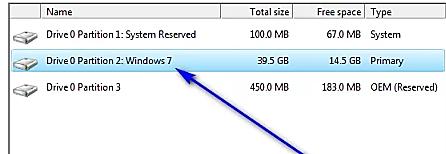

Step 5: Choose the partition you want to install Windows by clicking on it.

chosse the partition you want to install

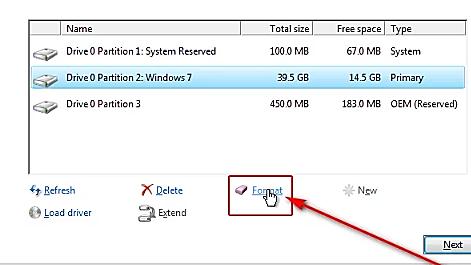

Step 6: Click the Format link below the partition list. Confirm formatting.

click the format link

Step 7: Once the partition has been formatted, click Next to continue the installation.

click next to continue

If formatting the partition does not work, you can try deleting and recreating it using the same steps.

Now, you can install Windows in the newly created partition.

Fix 7: Smart Repair by PassFab FixUWin

PassFab FixUWin is an incredible Windows repair tool recommended to troubleshoot errors like 0x80300024. This amazing tool automatically scans your computer for potential problems and troubleshoots them through its Smart Repair feature. You can use this tool to fix any Windows error such as a blue/black screen, stuck on boot loop or restart screen, etc. Using this tool is recommended for those looking for a quick and easy fix for any Windows error.

  • Install and launch PassFab FixUWin on any accessiable PC.
  • Plug in a USB/CD/DVD, click Create boot disk now in the following screen. create boot disk now

    Let the application burn a boot disk.

  • Switch to the problematic PC, plug in the bootable USB, and restart it. Open the boot menu by pressing the boot key continously, set your USB on boot priority, and save and exit. enter into boot menu
  • Click Automated Repair in the interface. click automatic repair
  • When the repair complete, click Restart to reboot your pc. repair complete
  • After restarting the computer, you can try to install Windows again. The problems will be resolved by PassFab FixUWin.

Fix 8: Replace your Hard Disk

If you have tried all the methods mentioned above and failed to resolve the Windows 0x80300024 error, the last option is replacing your hard disk. Most of the time, the errors during Windows installation are caused due to other hardware or software problems, but in your case, your hard drive is damaged and cannot be used for Windows installation. However, you can try to get it fixed by a repair shop, but it would be best if you used a different hard disk on your computer. After installing a new hard disk, you can install Windows on it without facing any errors.

FAQs:

1. Does error 0x80300024 indicate a virus?

No, the error code 0x80300024 does not indicate the presence of a virus on your PC. It is usually caused by faulty hardware, such as a damaged hard disk or installation media, multiple hard drives connected to the PC simultaneously, damaged or corrupt installation files, etc. However, there is a possibility that a computer virus or malware might be interrupting Windows installation. You can run a virus scan using third-party antivirus software or Windows Defender to eliminate this possibility. If it detects any suspicious program, remove it immediately and try installing Windows again.

2. Why am I unable to install Windows on my SSD?

Installing Windows on SSD is as simple as installing it on HDD. If you are facing issues installing it on SSD, it means there is some problem with the partition or the drive. Some errors might prevent you from installing Windows on it, and low disk space can be the culprit. You should first check if the SSD is connected to the computer properly or not. Then, try installing Windows after ensuring that your drive is functional and does not contain any corrupt files, and has enough space.

3. What are the prerequisites for installing Windows 10?

For installing different versions of Windows, you require other PC specifications.

  • Your computer meets the minimum hardware requirements for that version.
  • Check if the device you are using to install Windows is not corrupt or damaged.
  • Ensure that your hard disk/ SSD or partition to which you will install Windows has enough space.
  • Scan your disk partition for errors and viruses before installing Windows in it.

After performing the above checks, you can install Windows on your computer without facing any errors.

Summary

Facing an error while Windows installation is rare; however, many users face it worldwide. Various factors cause the error, so troubleshooting it requires much effort. In this article, we have discussed the causes, symptoms, and different ways to fix Windows install 0x80300024 error. Of all the proposed methods, the most recommended is using Smart repair by PassFab FixUWin, as this incredible tool automatically resolves any Windows error.
