Many users encounter the convert to gpt disk greyed out issue when preparing for Windows 11, enabling UEFI mode, or upgrading their storage setup. It can be confusing because Windows doesn’t always explain why the option is disabled.
Fortunately, this problem is usually caused by specific disk conditions and can be fixed with the right approach. In this guide, you’ll learn why the conversion option is greyed out, how to check your disk configuration, and several reliable methods to change MBR to GPT successfully.
1. Why is Convert to GPT Disk Greyed Out?
If the convert to gpt disk is greyed out in Disk Management, there is usually a technical reason behind it.
- The Disk Still Contains Partitions: Windows Disk Management only allows GPT conversion when the target disk is completely empty. If any partition exists on the disk, including system partitions, recovery partitions, or data partitions, the conversion option remains unavailable.
- You’re Trying to Convert a System Disk: If the disk contains your Windows installation, Disk Management cannot directly convert it while Windows is running. Since the operating system relies on active system partitions, Windows blocks the conversion to prevent boot problems.
- Disk Errors or Permission Problems: Corrupted partitions, file system issues, or administrative restrictions can also prevent conversion. If Windows detects inconsistencies on the drive, it may disable certain disk operations until the problems are resolved.
- Windows Version Limitations: Some users encounter this issue due to limitations of built-in Windows tools. Older versions of Windows may not provide the same conversion options available in newer releases.
2. Check Your Disk Type & Backup before Fixing It
Before attempting any solution, it’s important to identify your disk type and create a backup.
❓ Is Your Disk MBR or GPT?
First, verify the current partition style of the drive.
Right-click the Start button and select Disk Management.
-
Locate the target disk, such as Disk 0. Right-click the disk label and select Properties.
-
Open the Volumes tab. Look for Partition Style. You will see one of the following:
- Master Boot Record (MBR)
- GUID Partition Table (GPT)
If the disk already uses GPT, no conversion is required.
❓ Is It a System Disk or Data Disk?
The type of disk matters because conversion methods differ.
System Disk
A system disk contains Windows installation, boot files and recovery partitions.
After conversion, the system must boot using UEFI instead of Legacy BIOS.
Data Disk
These disks are generally easier to convert because they do not contain active boot files.
Understanding whether you’re working with a system disk or a data disk helps prevent startup issues after conversion.
⚠ Back Up Important Data
Some conversion methods require deleting partitions before converting the disk. Because deleting partitions permanently removes stored data, creating a backup beforehand is highly recommended.
A backup ensures your data remains safe if something unexpected happens during the conversion process.
3. How to Solve “Convert to GPT Disk Greyed Out” Issue?
Fix 1: Convert to GPT via Disk Management
-
Right-click the Start menu and select Disk Management. Locate
the target disk. Right-click each partition and select
Delete Volume until the entire disk becomes
unallocated.
-

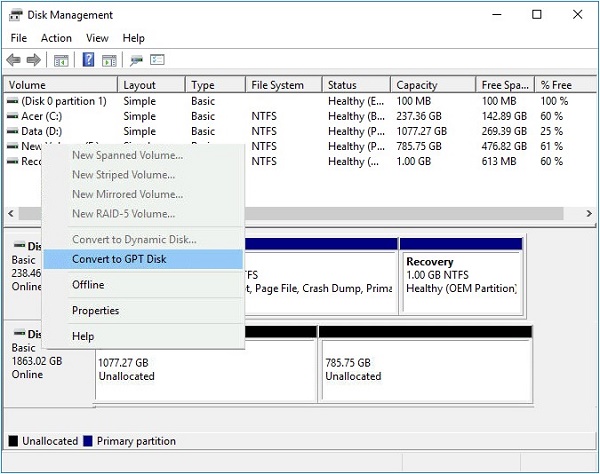

Once the disk shows only unallocated space. Right-click the disk label
and select Convert to GPT Disk.
The conversion should now be available.
- After conversion, create new partitions and format them for use. This method works well for secondary storage drives but is usually not practical for system disks.
Fix 2: Convert to GPT via DiskPart
If Disk Management isn’t working, DiskPart provides another built-in solution.

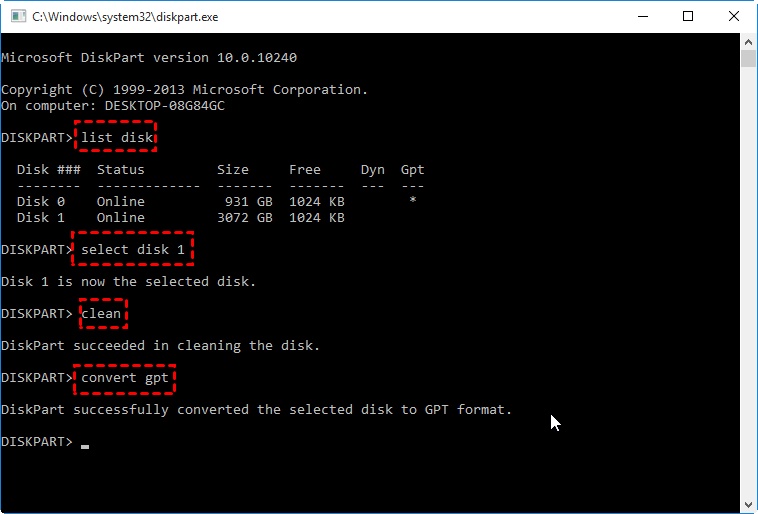

- Search for Command Prompt, then select Run as administrator. Type: diskpart and press Enter.
- Next, type: list disk.You’ll see all connected drives.
- Type: select disk X. Replace X with the correct disk number.
- Type: clean.This removes all partitions and data from the drive.
-
Type: convert gpt. DiskPart will immediately convert the
drive.
- Type: exit and press Enter.
Fix 3: Bypass “Convert to GPT Disk Greyed Out” with PassFab 4EasyPartition
If Disk Management convert to GPT greyed out is preventing you from converting your disk, a dedicated partition management tool can be a much easier solution. Unlike Windows Disk Management, which requires deleting all existing partitions first, PassFab 4EasyPartition provides a disk conversion feature that can help users change MBR to GPT without manually wiping the drive.
-

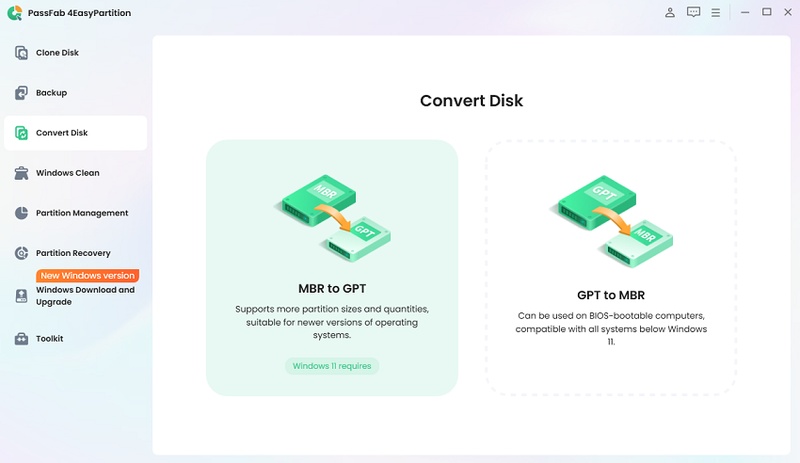

Install and launch PassFab 4EasyPartition on your computer. From the
menu on the left, select Convert Disk and then choose
MBR to GPT to get started.
-
Select the disk you want to change from MBR to GPT. Once you've
selected the correct disk, click Continue to move to the next
step.
-
If you're converting the disk that contains Windows, the software will
first prepare the files needed for the conversion process.
-

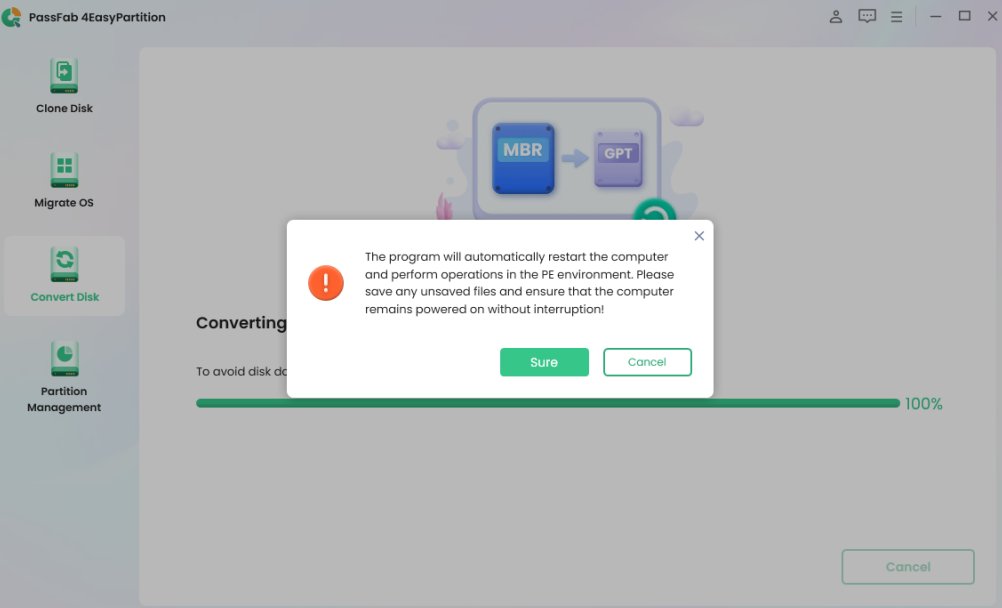

When a confirmation message appears, save any unfinished work and make
sure your computer won't lose power during the process. Then click
Sure to continue. Your computer will restart automatically and
enter a special conversion mode.
Note:
If you're converting an external drive or a non-system disk, the conversion may be completed directly in Windows without restarting the computer.
-
After the restart, the software will automatically open in its
conversion environment. Select MBR to GPT again to
continue.
-
Select the disk you want to convert and click Continue. Before
proceeding, take a moment to make sure you've selected the correct
drive.
Note:
In this environment, only the system disk may be visible. This is normal.
-

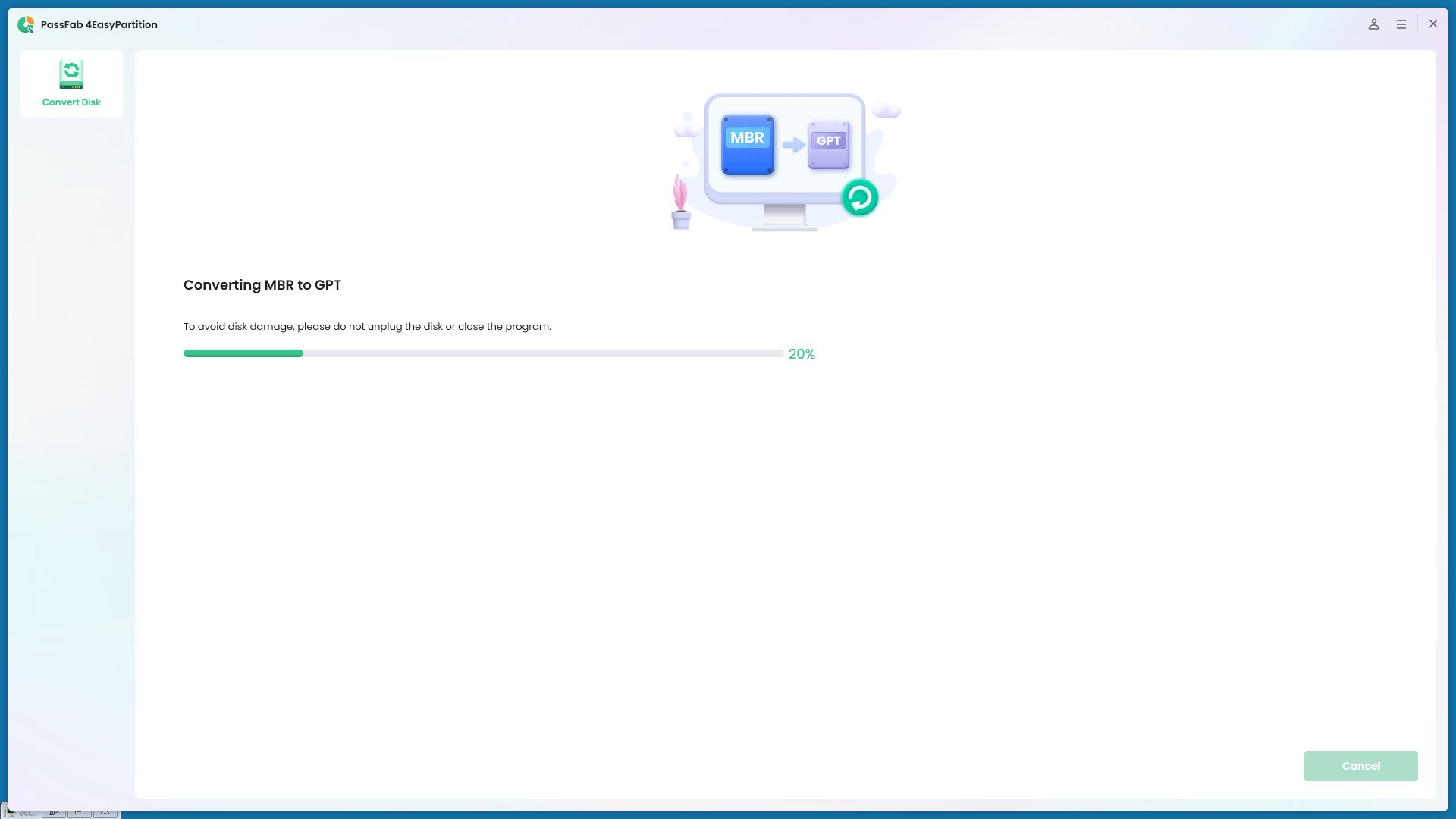

The software will now begin converting the disk from MBR to
GPT.
The conversion time can vary depending on the disk layout and the number of partitions on the drive. Wait for the process to finish and avoid turning off your computer.
-

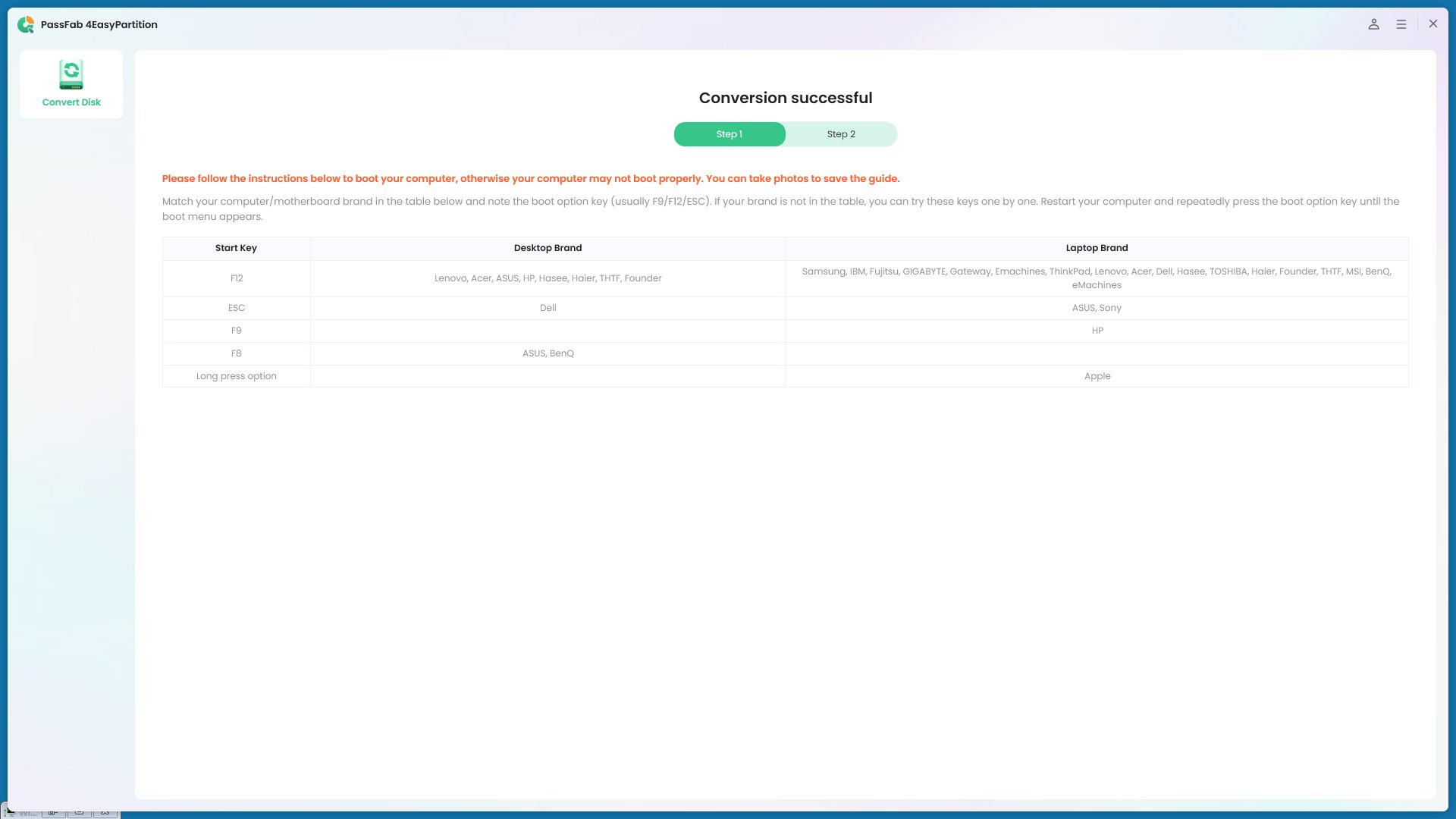

Once the conversion is complete, you'll see a success message on the
screen. After that, follow the onscreen instructions to complete
restart process.
Your system should now recognize and boot from the GPT disk correctly. This method is ideal for users who can’t convert MBR to GPT through Windows tools and want to preserve existing data.
More FAQs
Why can’t I convert my MBR disk to GPT?
In most cases, the conversion fails because the disk still contains partitions, the drive is being used as a system disk, or there isn’t enough space available for GPT-related boot structures. Disk errors and BIOS compatibility issues can also prevent successful conversion.
What does convert to GPT disk mean?
Converting a disk to GPT changes its partition structure from MBR to GPT. GPT supports larger drives, more partitions, and UEFI boot mode, making it the preferred option for modern Windows systems.
What tool converts MBR to GPT?
Several tools can perform the conversion, including Disk Management, DiskPart, MBR2GPT, and 4DDiG Partition Manager. While Windows tools often require deleting partitions first, 4DDiG offers a more convenient way to convert disks without removing existing data.
Conclusion
Encountering the convert to gpt disk greyed out problem can be frustrating, especially when preparing for Windows 11 or switching to UEFI boot mode. In most cases, the issue occurs because the disk still contains partitions or because Windows limitations prevent direct conversion.
While Disk Management and DiskPart can solve the problem, both methods require deleting data first. If you want an easier and safer way to change MBR to GPT, 4DDiG Partition Manager provides a user-friendly solution. With the right method, you can successfully convert your drive and take advantage of all the benefits GPT offers.
